Glass solar panels have a 25-year lifespan
This link has:

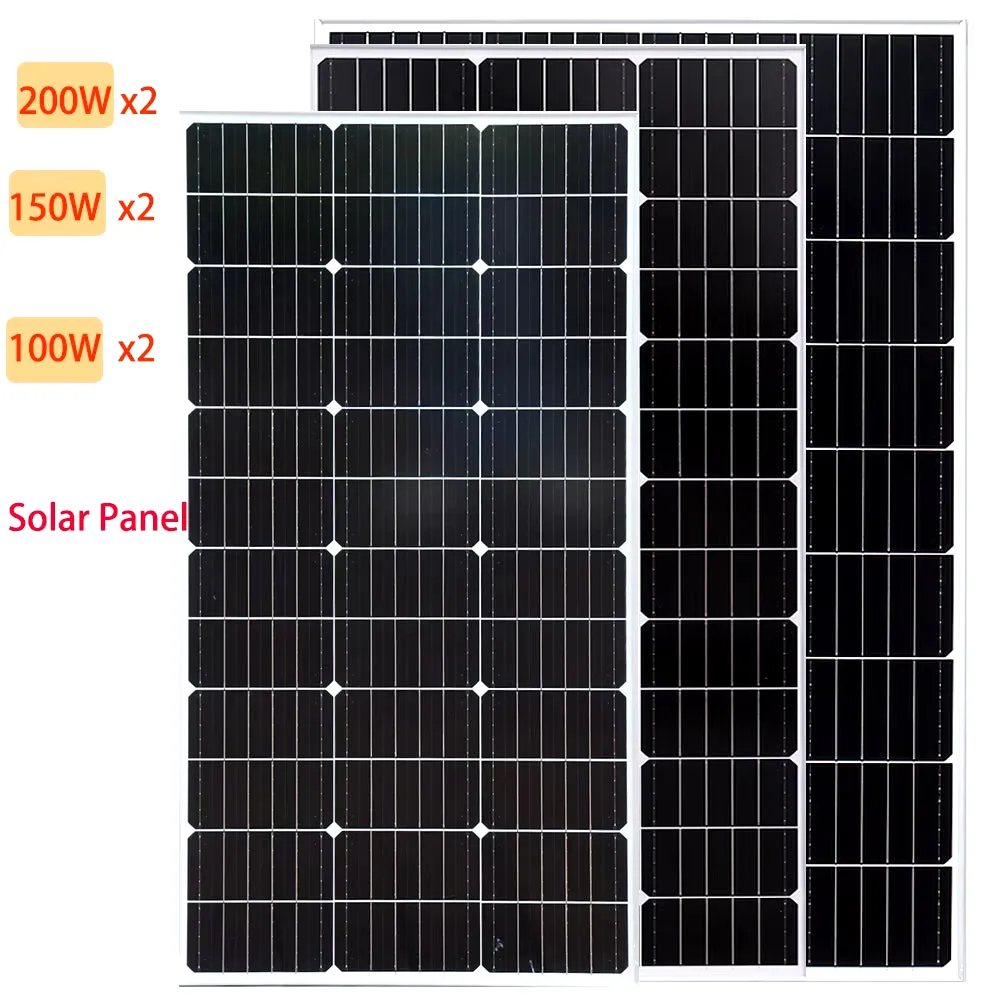

2x 100W / /2x 150w /2x 200W five glass solar panels to choose from, you are careful to choose the solar panel you need power when you place your order
Features:
【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
【Durable】 positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).
【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.

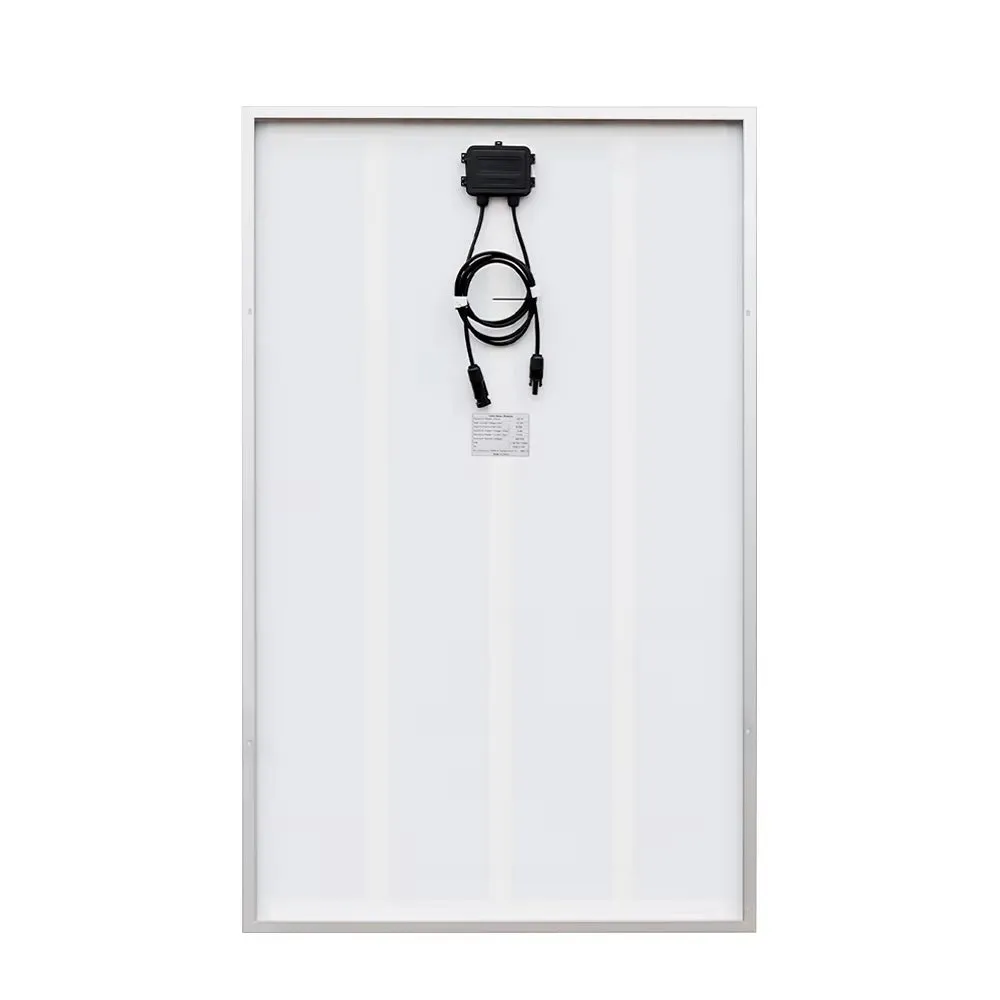

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.
Reliable
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
EL tested solar modules; no hot-spot heating guaranteed
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
TPT back sheet ensures smooth performance over a long period of time

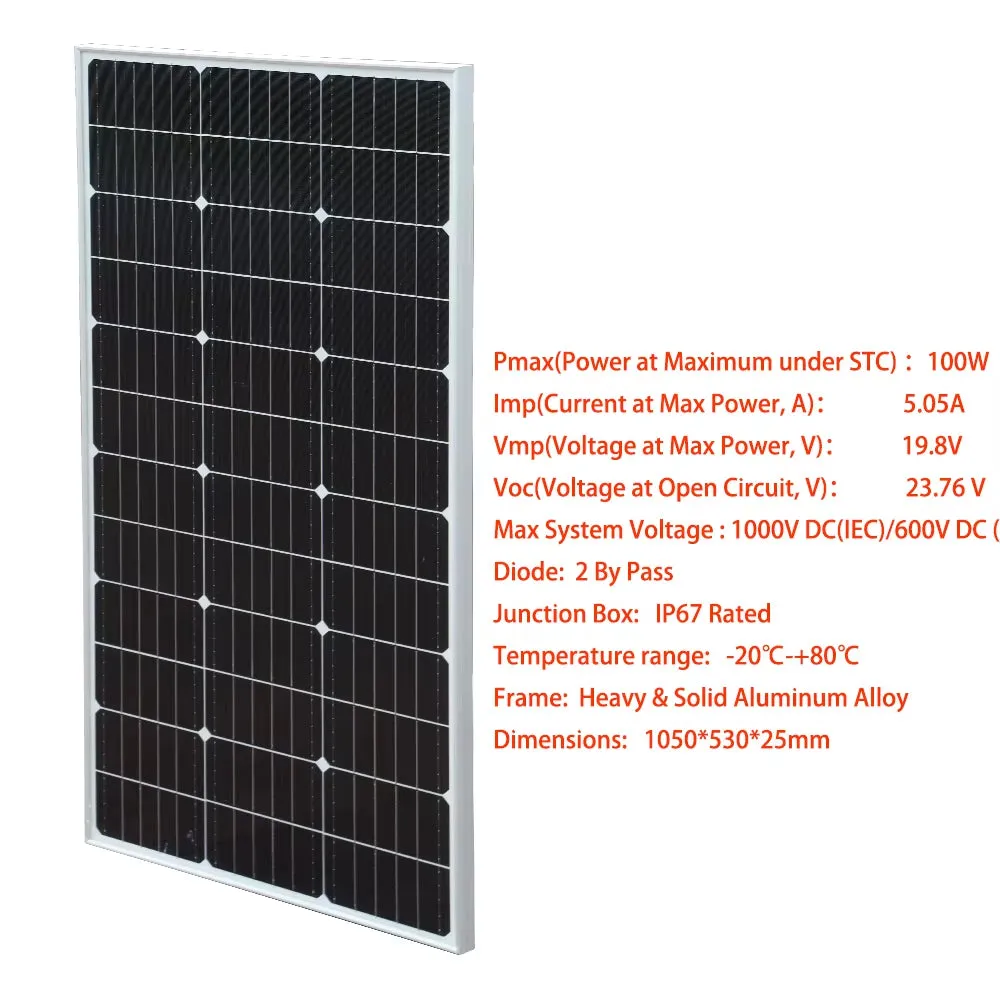

Specification:
Pmax(Power at Maximum under STC) :100W
Imp(Current at Max Power, A): 5.05A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit, V): 23.76 V
Output Tolerance: ±5%
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
Diode: 2 By Pass
Junction Box: IP67 Rated
Temperature range: -20℃- 80℃
Frame: Heavy & Solid Aluminum Alloy
Kind of Glass: 3.2mm Tempered glass
Output Cable: 2.5mm?/14AWG 90mm/3.54＂
Dimensions: 1050*530*25mm
STC:Irradiance 1000w/m? Temperature 25℃ AM=1.5
Max power should be tested in sunning weather 12:00-14:00am,no Shelter and Sun vertical angle.
Specification:
Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 25,9 V
Short circuit current (Isc) 7,59 A
Vmp 21.6V
Maximum power current(Imp) 6,9 A
Temperature range -40℃～ 80℃
Cell Monocrystalline silicon cell
Number of cells 39 pieces
Cell efficiency 23%.
Weight 6.5kg
Size 1140*530*25mm
Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

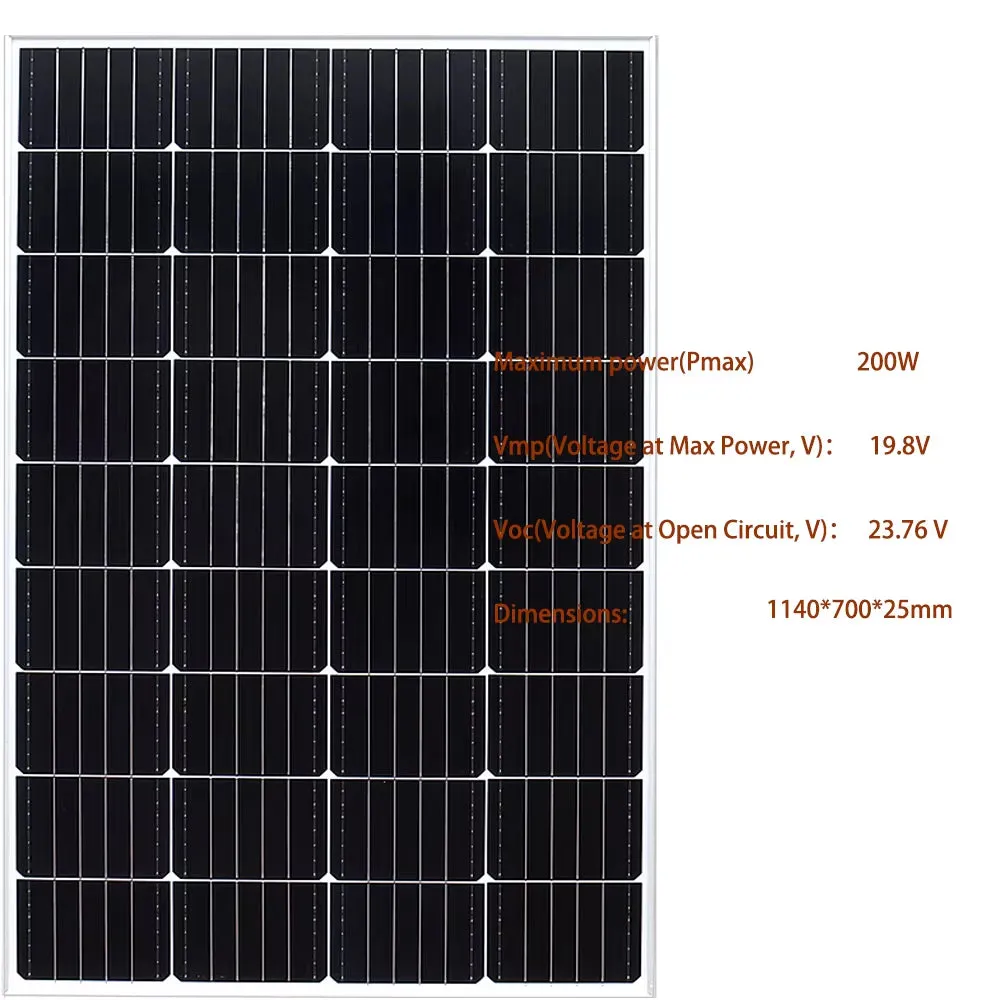

Maximum power(Pmax) 200W
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit, V): 23.76V
Output Tolerance: ±5%
Diode: 2 By Pass
Junction Box: IP67 Rated
Temperature range: -20℃- 80℃
Frame: Heavy & Solid Aluminum Alloy
Kind of Glass: 3.2mm Tempered glass
Output Cable: 2.5mm²/14AWG 90mm/3.54＂
Dimensions: 1160*700*25mm
Weight: 7.96kg
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5
Durable
Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance

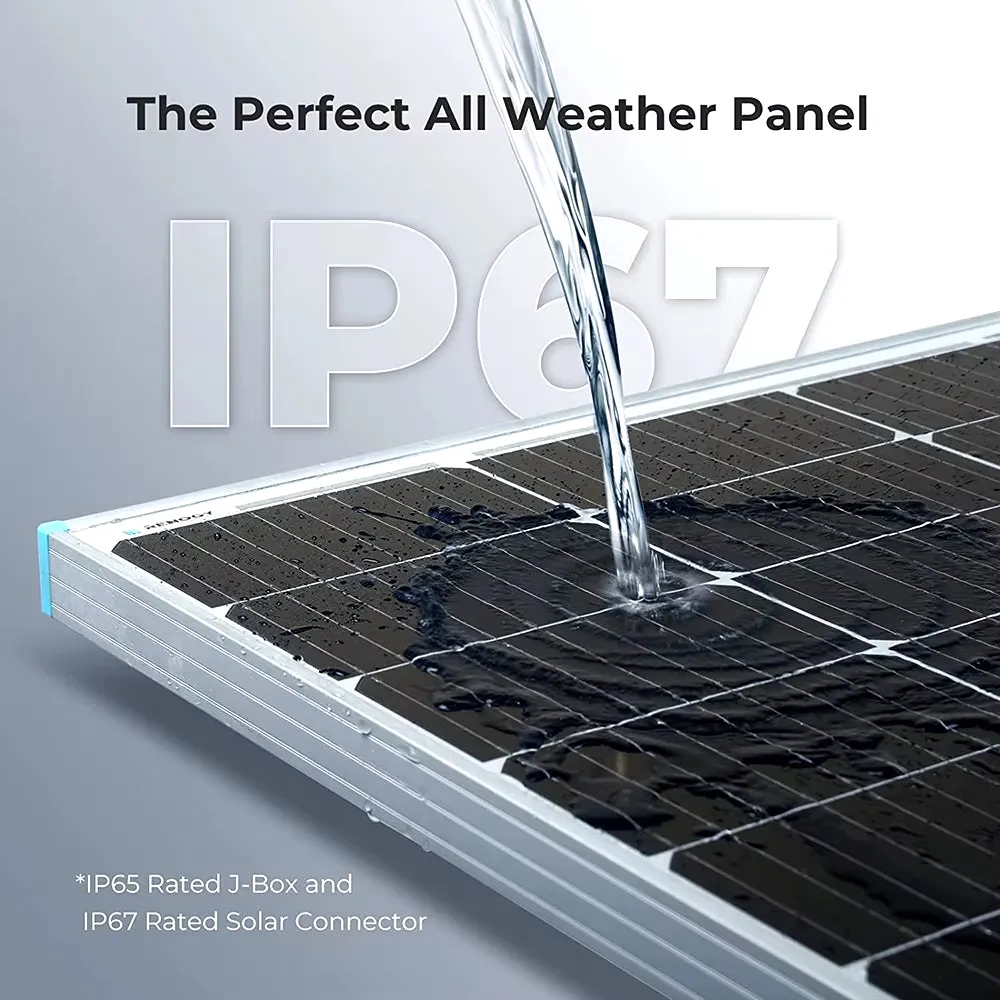

IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Use of solar panels for off-grid systems: need to be used together with batteriesSolar panels for grid-connected systems: need to be connected to a domestic grid system, need to be configured for grid-connected inverters
SOLAR HOME SYSTEM
• Small DC systems
• Telemetry use
• Home use
• Holiday houses
• Garage lighting
• Recreational use• Lighting of streets in regions without
reliable grid
• Billboard lighting
• Sports field lighting
• Parking space lighting
• AC and DC loads possible
• Home use
• Industrial use
HYBRID SYSTEM
• PV and wind turbine or
diesel generator
• DC and AC loads possible
• High reliability
• Small hydro generators
• Recreational use
• Caravan and camping
OFF-GRID CONNECT
• Covering self consumption
• Grid is used as back-up
• Reduces energy cost
